Spring Snap Links-Fast Shipping

Description

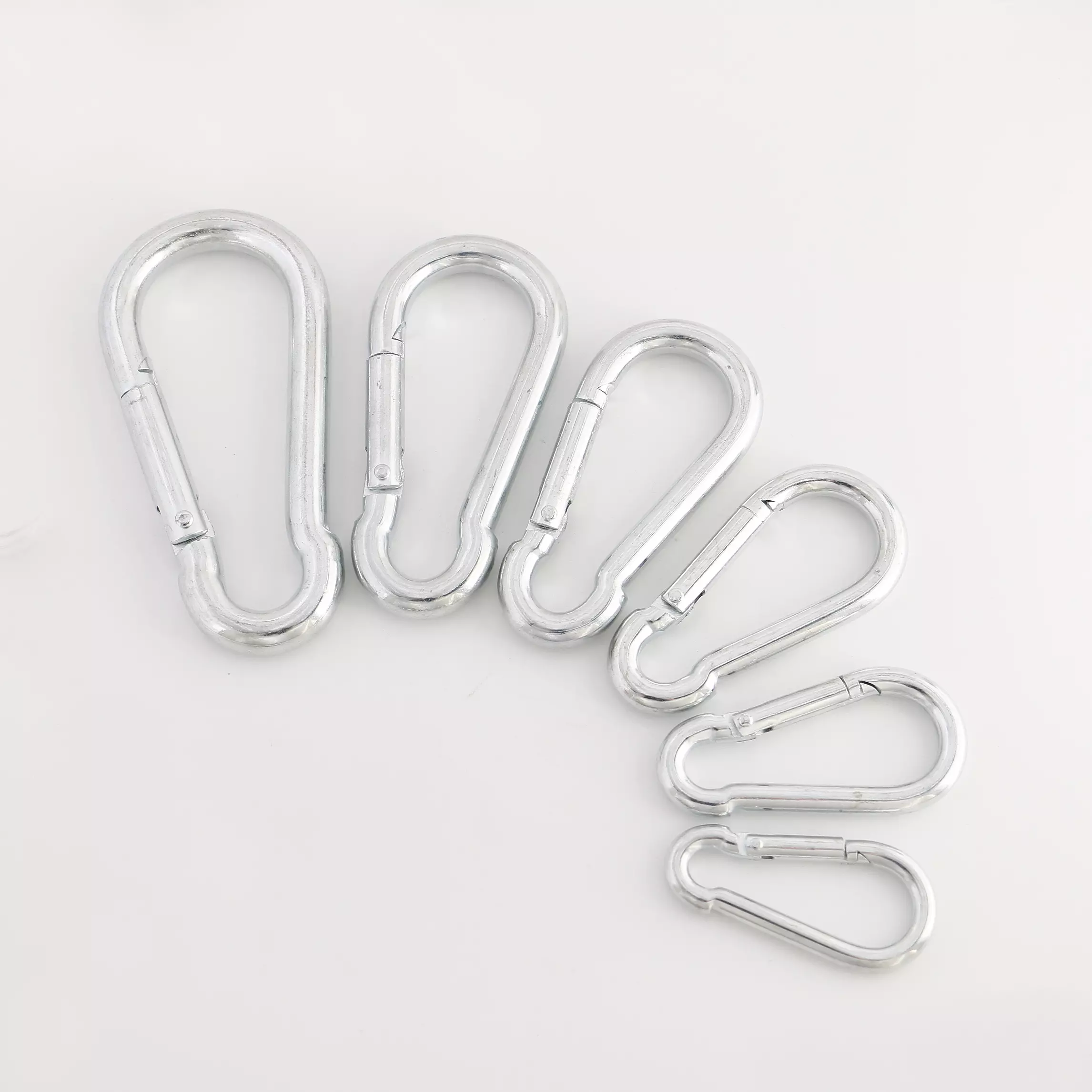

Spring Snap Links

These silver zinc plated steel Spring Snap Links are designed for quick repair of low carbon steel chain and for joining attachments. Snap links require no tools for assembly, simply push the spring lock onto the desired attachment. Snap links are removable and reusable. Use with chain of equal or lower working load limit.

2″ – 60.3mm

Working Load Limit (WLL): 105 lbs

Link Diameter (A): 3/16″ – 5.7mm

Inside Eye Width (B): 0.19″ – 7.6mm

Eye Width (C): 0.31″ – 9mm

Overall Length (D): 2″ – 60.3mm

Link Opening (E): 0.25″ – 8mm

Inside Length (G): 1.62″ – 5mm

2.38″ – 70mm

Working Load Limit (WLL): 395 lbs

Link Diameter (A): 1/4″ – 6.7mm

Inside Eye Width (B): 0.28″ -9.5mm

Eye Width (C): 0.31″ – 11mm

Overall Length (D): 2.38″ – 70mm

Link Opening (E): 0.31″ – 10.8mm

Inside Length (G): 1.92″ – 57.3mm

3.13″ – 80.2mm

Working Load Limit (WLL): 500 lbs

Link Diameter (A): 5/16″ – 7.7mm

Inside Eye Width (B): 0.38″ -9.8mm

Eye Width (C): 0.44″ – 12mm

Overall Length (D): 3.13″ – 80.2mm

Link Opening (E): 0.38″ – 12.2mm

Inside Length (G): 2.63″ – 65.5mm

4″ – 90.7mm

Working Load Limit (WLL): 770 lbs

Link Diameter (A): 3/8″ – 8.5mm

Inside Eye Width (B): 0.44″ – 11.2mm

Eye Width (C): 0.63″ – 14mm

Overall Length (D): 4″ – 90.7mm

Link Opening (E): 0.63″ – 14mm

Inside Length (G): 3.19″ – 74.5mm

4.75″ – 100.6mm

Working Load Limit (WLL): 900 lbs

Link Diameter (A): 7/16″ – 9.4mm

Inside Eye Width (B): 0.56″ – 13.6mm

Eye Width (C): 0.75″ – 15.4mm

Overall Length (D): 4.75″ – 100.6mm

Link Opening (E): 0.69″ – 14.5mm

Inside Length (G): 3.86″ – 83mm

5.63″ – 119mm

Working Load Limit (WLL): 900 lbs

Link Diameter (A): 1/2″ -10.5mm

Inside Eye Width (B): 0.75″ -16mm

Eye Width (C): 0.94″ – 18mm

Overall Length (D): 5.63″ – 119mm

Link Opening (E): 0.75″ – 18mm

Inside Length (G): 4.61″ – 98.4

Sold in single, 100 and 1000 pieces.
