Description

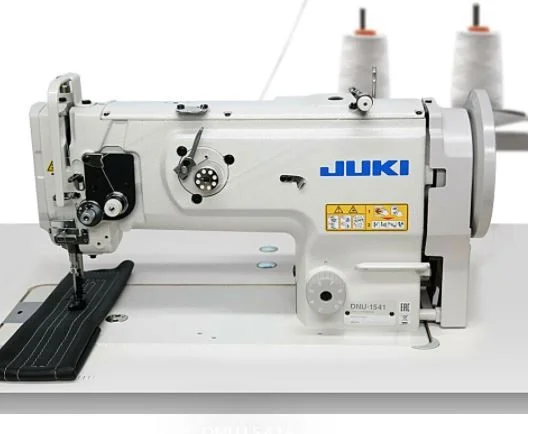

The #1 Seller Juki DNU1541 Walking Foot Needle Feed Industrial Sewing Machine is the work-horse of the industry. WITH STAND & MOTOR INCLUDED.
Popular DNU241 Big M Bobbin, 9mm Stitch Length, 9/16mm Lift
Horizontal axis large hook, loads from the side. Replaces Juki DNU-241/H . Will fit standard cut out. Also available with safety clutch for more.
Single Needle Compound Needle Feed And Walking Foot Speed up to 3000 Stitches Per Minute 9 Mm Stitch Length Industrial Upholstery Machine.
US Warranty 90 Days labor on defects in materials and workmanship. Non-US Warranty: 30 days parts and labor
Specifications With its larger needle bar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.
Alternating vertical movements of the walking foot and presser foot are as large as 6.5 mm In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes Rectangular feed prevents needle from fraying Sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering When the thread is caught in the hook or any other sewing trouble occurs.
The safety mechanism will automatically operate to prevent the machine from being damaged Stitch length can be easily selected by the stitch dial Includes a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large hand-wheel Knee-lifter mechanism is built in the bed which reduces the pressure required to operate facilities setup Machine’s full open-type top design makes adjusting works easier Machine comes with a lubricating mechanism that uses a centralized oil wick which substantially reduces the time and trouble required for oiling the machine.
A walking foot mechanism is built into the machine arm to prevent oil from scattering Stitch length: 9 mm Needle bar stroke: 36 mm Presser foot lift clearance by hand: 9 mm Presser foot lift clearance by knee: 16 mm Hook type: Horizontal-axis full-rotary double-capacity hook Needle: 135 x 17 Thread: #30 #5, B46 B138, Nm=60/3 15/3 Distance from needle to machine arm: 10.3″ Weight of machine head: 80.47lbs UL Listed
Estimated US Shipping
